Description

Key attributes

Type

OLT

Use

FTTX

Model Number

RRU5909-2100

Brand Name

ZTE

Place of Origin

Hunan, China

Warranty Time

1YEAR

Model

RRU 5909

Warranty

1 Year

TYPE

Distributed base station remote unit

USE

Distributed base station remote unit

Working frequency

900MHZ 1800MHZ 2100MHZ

Certification

Function

FTTH Optical Network Connection

WORK

2G 3G 4G

Packaging and delivery

Selling Units

Single item

Product descriptions from the supplier

Product Description

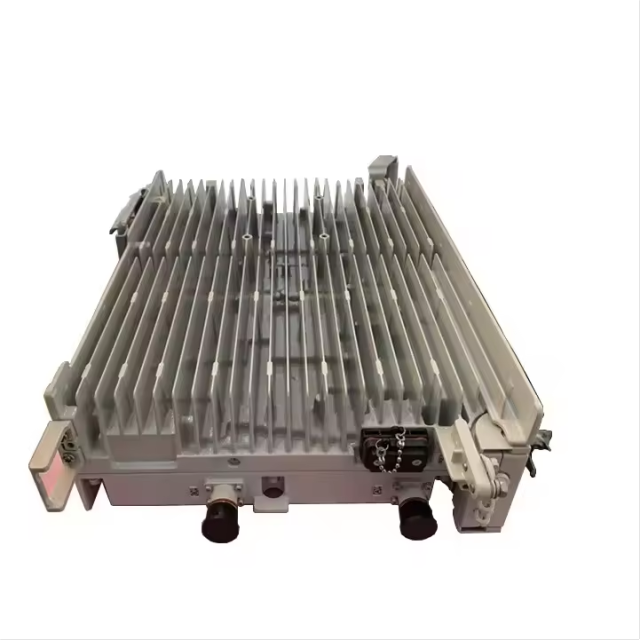

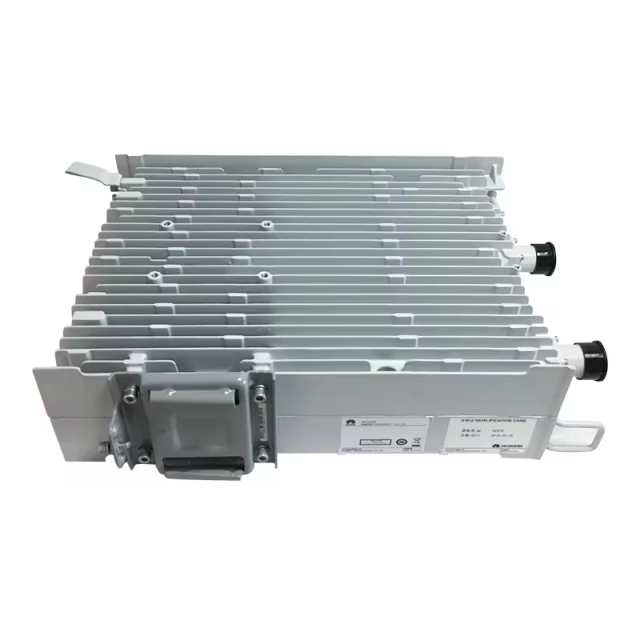

Remote Radio Unit

RRU5909-2100

RRU consists of the following stems:

* High speed interface unit * signal processing unit * power amplifier * doubler * expansion port * Power module

The RRU performs the following functions:

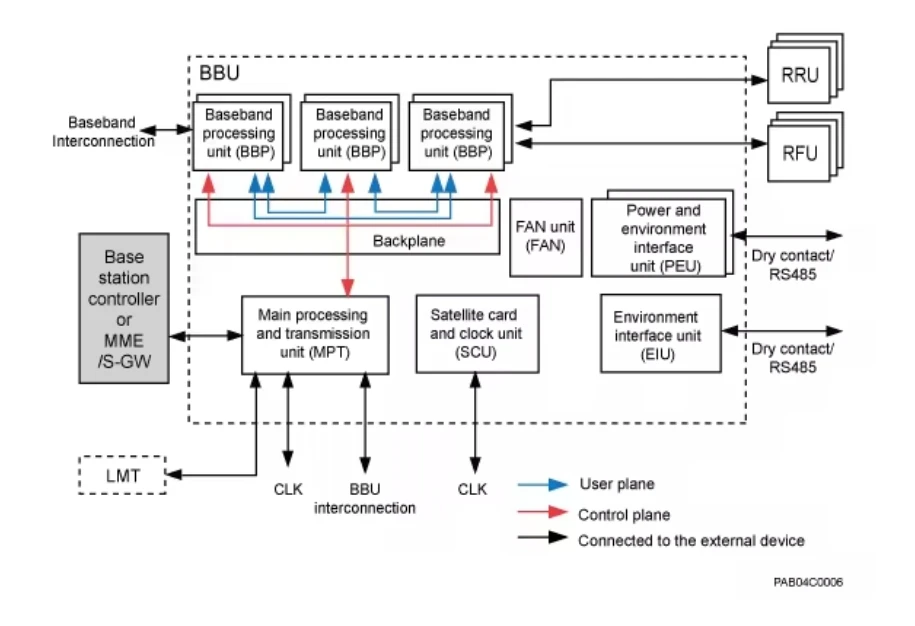

* Receives downlink baseband data from the BBU and sends uplink baseband data to this baseband unit.

* Receives an RF signal from the antenna system, down-converts the signal to an intermediate frequency (IF) signal, amplifies the IF signal, performs analog-to-digital conversion, and up-converts the RF signal to the transmit (TX) band.

* Multiplexing the receive (RX) and TX signal RF channels allows these signals to share the same antenna channel and filter the RX and TX signals.

* Available with built-in offset tee (BT). The built-in BT couples the RF signal and OOK signal and transmits them through TX/RX port A. The built-in BT is also a Tower Mount Amplifier (TMA).

* RRU can use AC/DC power supply module. In this case, this RRU is called a remote communication unit.

RATs and frequeney bands supported by an RRU5909
Type	Frequency Band (MHz)	Receive Frequency Band (MHz)	Transmit Frequency Band (MHz)	RAT	IBW (MHz)
RRU5909	900 EGSM	880 to 915	925 to 960	GSM, UMTS,LTE FDD. LTENB-IoT.GU.GL. UL. GM.UM. LM, GLM.ULM, and GUL	35
	900 PGSM	890 to 915	935 t0 960	GSM. UMTS.LTE FDD, LTENB-IoT, GU.GL. UL. GM.UM. LM.GLM.ULM, and GUL	25
	1800	1710 to 1785	1805 to 1880	GSM. LTE FDD.LTE NB-IOT.GL. GM, and LM	45
	2100	1920 to 1980	2110 to 2170	UMTS, LTEFDD. and Ul	60

RRU 02311UWT WD5M215904GB RRU5904 for Multi-Mode 2100MHz(4*60W)

Related Products

Name: RRU 02311UWT WD5M215904GB RRU5904 for Multi-Mode 2100MHz(4*60W)
Brand: ENKEN
SKU: 1601193243117
Price: 500.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Brand new HUAWEI EG8010H Original GPON EPON Bridge ONU ONT with 1 GE LAN

HS8145X6 4GE 2.4G/5.8G WIFI6 5dBi dual band WIFI GEPON ONU XPON FTTH EG8145X6

Modem Router WiFi FTTH ONT ONU HuaWei HS8546V5 GPON XPON EPON With 4GE+1POTS+1USB+wifi Optical Network Terminal

GPFD C+/C++ huawei gpon Olt 16 Pon interface board compo card tth optical support huawei olt ma5600t ma5608t ma5680t

OLT ZTE ZXA10 C320 8/16 ports Smxa Pram Smxa/3 Smxa/1 GPON ZTE C320 OLT

huawei Ma5800X7 OLT GPON huawei ma5800T X7 X15 X2 GEPON olt optical line terminal MPLA MPLB 10G uplink card NEXD POWER PILA

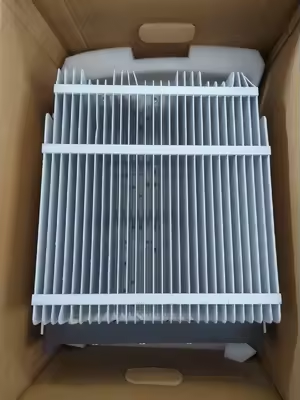

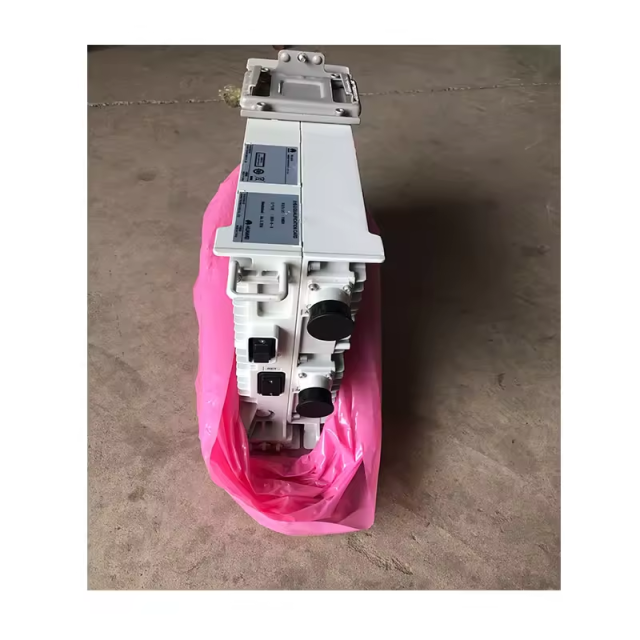

Packaging & Shipping

RRU 02311UWT WD5M215904GB RRU5904 for Multi-Mode 2100MHz(4*60W)

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Different amount of time will be required for different

Hunan Zhedian Technology Co., Ltd.

ZheDian is Huawei &ZTE Access Network Authorized Distributor, we carry full line of Huawei & ZTE Access Network Products. All the products are 100% Original and Brand new. And we also have very good ability to provide the technical support for these products.Most of the products are in stock. Quality below 100pcs can be delivered within 15 days.OEM and ODM are warmly welcomed.

FAQ

Q: Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q:Do you have any MOQ limit for sample order?

A: Low MOQ, 1pc for sample checking is available

Q: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q: What is your delivery time?

A: It is in 3-5 working days since the payment confirmed . If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .

Q: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our formal products.
