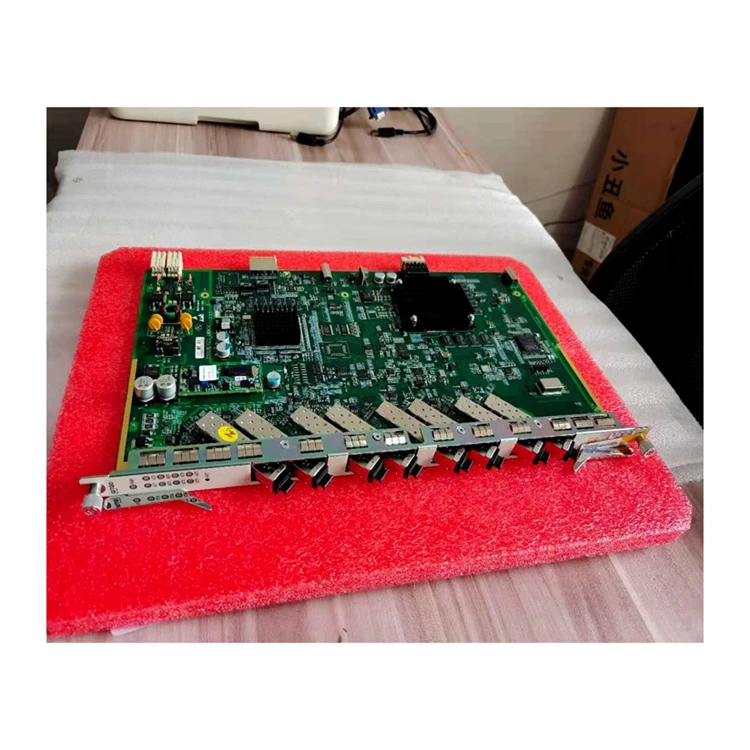

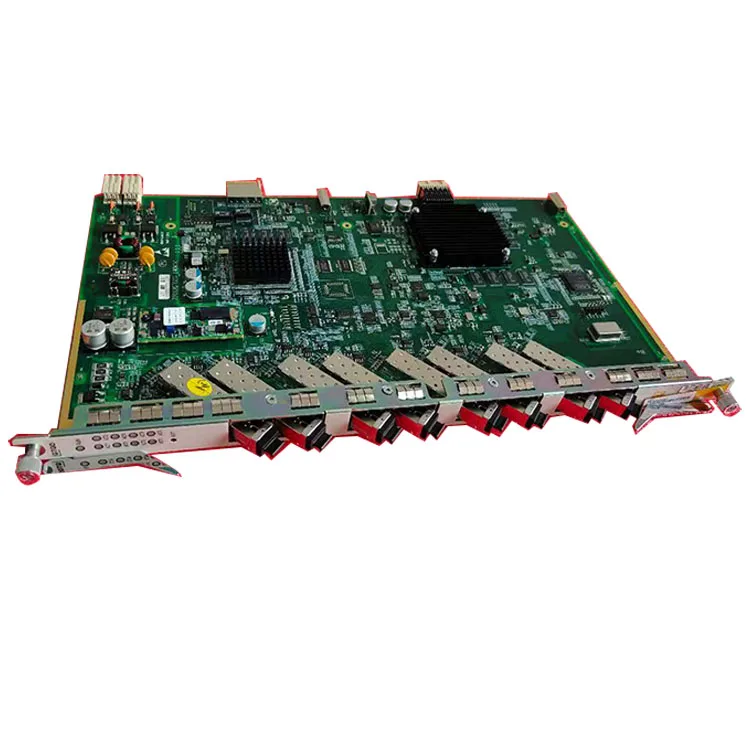

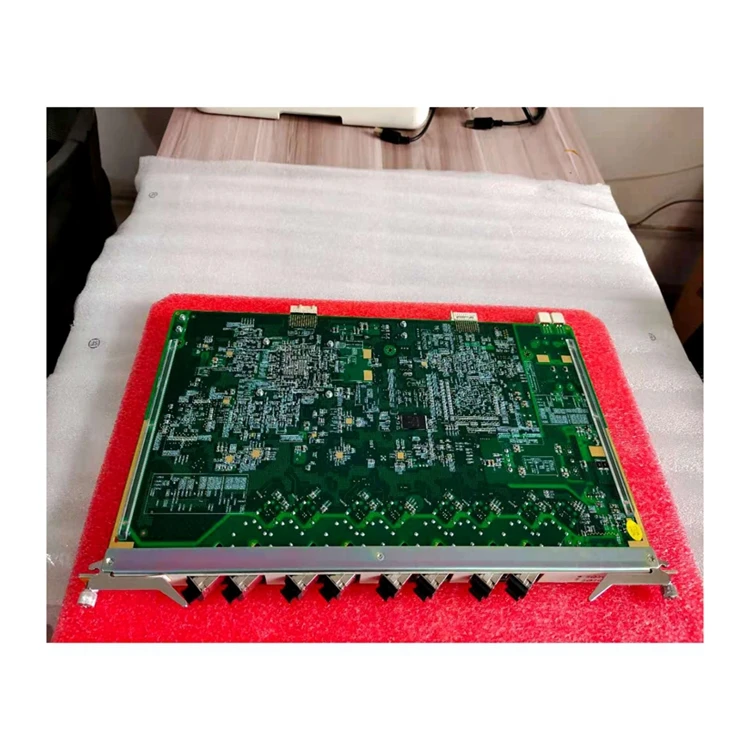

ZTE GTGO Board
The ZTE GTGO is an 8-Port GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.
• High Density:
- 8 GPON ports per card, up to 1:128 split ratio
• GPON Function:
- Support ONU power saving management defined in G.987.3
- 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
- Support H-QOS
- 1024 queues and 356 schedulers per PON port
- Support color-sensitive RED and WRED discard algorithm
• Clock / Time Function:
- Receive 1PPS+TOD signals and send them to the ONU through a PON channel
• Low Power Consumption:
- Newly developed lower power GPON MAC chip
- Reduce 30% power consumption on industry average
The ZTE GTGO is an 8-Port GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.
• High Density:
- 8 GPON ports per card, up to 1:128 split ratio
• GPON Function:
- Support ONU power saving management defined in G.987.3
- 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
- Support H-QOS
- 1024 queues and 356 schedulers per PON port
- Support color-sensitive RED and WRED discard algorithm
• Clock / Time Function:
- Receive 1PPS+TOD signals and send them to the ONU through a PON channel
• Low Power Consumption:
- Newly developed lower power GPON MAC chip
- Reduce 30% power consumption on industry average
