Description

Key attributes

Type

OLT

Use

INDOOR

Network

3 G, 4 G, POE, TCP, Wi-Fi

Model Number

OSN500

Brand Name

Place of Origin

Hunan, China

Warranty Time

1 YEAR

Model Number:

OPTIX OSN 500

Color

black

Material

ABS,iron

Warranty

1 Year / 12 Months

Power supply

110~240VAC

Pluggable Module:

SFP/SFP+/XFP; tunable XFP

DC Power supply:

-48 V or -60 V (1+1 protection for power supply)

Switching Capability:

ODUk ODUk (k = 0, 1, 2)/ODUflex

Short-term operation temperature

5°C (23 °F) to 45°C (113 °F)

Packaging and delivery

Selling Units

Single item

Product descriptions from the supplier

Product Description

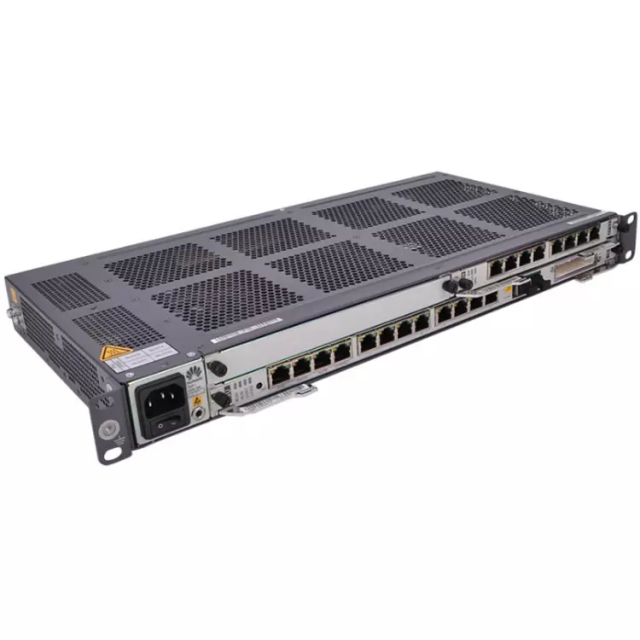

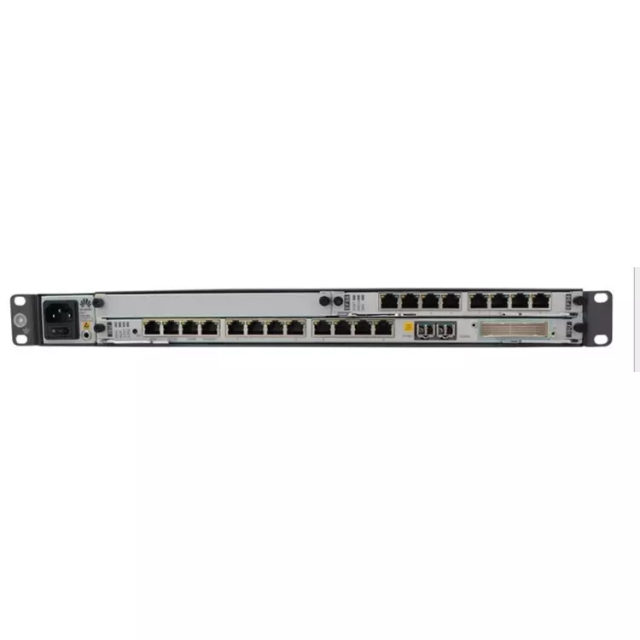

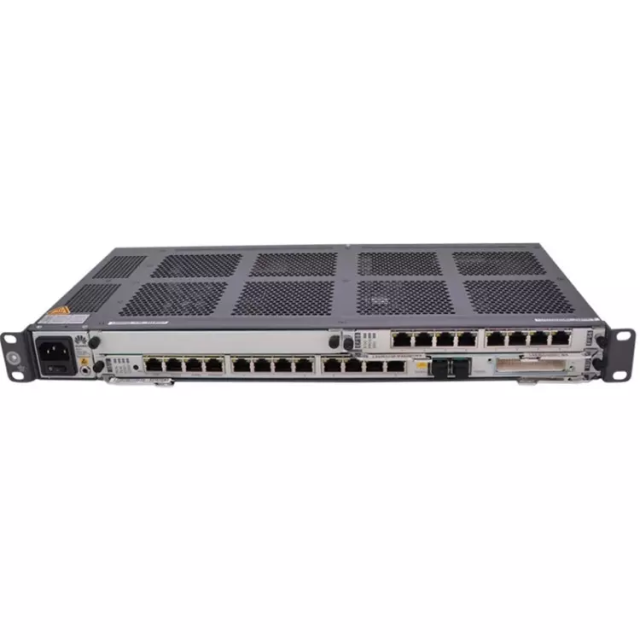

OptiX OSN 500 Overview OptiX OSN 500 is a new-generation opitcal transmission equipment used at the access layer for leased line and mobile BTS access. Quick Specs Table 1 shows the Quick Specs.

Product Code	OptiX OSN 500
Dimensions	44mm (H) x 442mm (W) x 220mm (D)
Switch capacity	Packet: 7.2 Gbit/s and TDM: 21.25 Gbit/s (higher order), 5 Gbit/s (lower order)
Service slots	3 slots
Power Supply	48V DC/ -60V DC, 220V AC/110V AC

Product Details OptiX OSN 500 provides these features: • MPLS-TP for Highly Efficient and Highly Available Packet Transport - Guaranteed Performance from end-to-end committed bandwidth mechanism. - 99.999% availability: 50ms recovery for both linear and ring applications. - SDH-like OAM mechanism for quick fault detection, troubleshooting and end-to-end performance monitoring. • Flexible installation - 1U high box - Fitting 19/23’ rack, outside cabinet, wall, desk and pole mounting. - AC or DC power supply • TP-Assist for Easy O&M - MPLS-TP based O&M solution ‘TP-Assist’ providing efficient planning, fast deployment and simple maintenance, making the large-scale packet network easily manageable - Traffic based crystal clear O&M is supported with visual networklevel view, graphical format to display end-to-end service configuration, performance and status. - Better maintenance experience even than SDH: visualized end-toend bandwidth management, intelligently locating 92% failure,analyzable and predicable network management • Industrial Certifications Ensure Reliable Operation - Compliant with EN 50121-4, IEC 61850-3, IEC 61000-6-5, IEEE 1613 Compare to Similar ItemsTable 2 shows the comparison.

Product Code	OptiX OSN 500	OptiX OSN 550	OptiX OSN 580	OptiX OSN 3500	OptiX OSN 7500	OptiX OSN 7500 II
Dimensions	44mm (H) x 442mm (W) x 220mm (D)	88mm (H) x 442mm (W) x 220mm (D)	221 mm (H) x 442 mm (W) x 224 mm (D)	722 mm (H) x 497 mm (W) x 295 mm (D)	757 mm (H) x 497 mm (W) x 295 mm (D)	800mm (H) x 496mm (W) x 295mm (D)
Switch capacity	Packet: 7.2 Gbit/s and TDM: 21.25 Gbit/s (higher order), 5 Gbit/s (lower order)	Packet: 64 Gbit/s ,TDM: 20 Gbit/s (higher order)	Packet: 560 Gbit/s, TDM: 280 Gbit/s (higher order)	Packet: 160 Gbit/s and TDM: 200 Gbit/s (higher order), 20 Gbit/s (lower order)	Packet: 160 Gbit/s and TDM: 360 Gbit/s (higher order), 80 Gbit/s (lower order)	Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s
Switch capacity		Packet: 64 Gbit/s ,TDM: 20 Gbit/s (higher order)	Packet: 280 Gbit/s, TDM: 280 Gbit/s (higher order)
Service slots	3 slots	8 slots	15 slots	15 slots for processing boards and 16 slots for interface boards	22 slots for processing boards and 8 slots for interface boards	32 slots, 16 slots for interface boards and 16 slots for processing boards with same bandwidth per slot
Power Supply	48V DC/ -60V DC, 220V AC/110V AC	-48 V DC/-60 V DC	-48 V DC/-60 V DC	-48V DC/ -60V DC; 110/220V AC (External module)	-48V DC/-60V DC; 110V AC/220V AC (External module)	-48V DC/-60V DC
Power Supply	48V DC/ -60V DC, 220V AC/110V AC	220 V AC/110 V AC	220 V AC/110 V AC	-48V DC/ -60V DC; 110/220V AC (External module)	-48V DC/-60V DC; 110V AC/220V AC (External module)	-48V DC/-60V DC
