Product Description

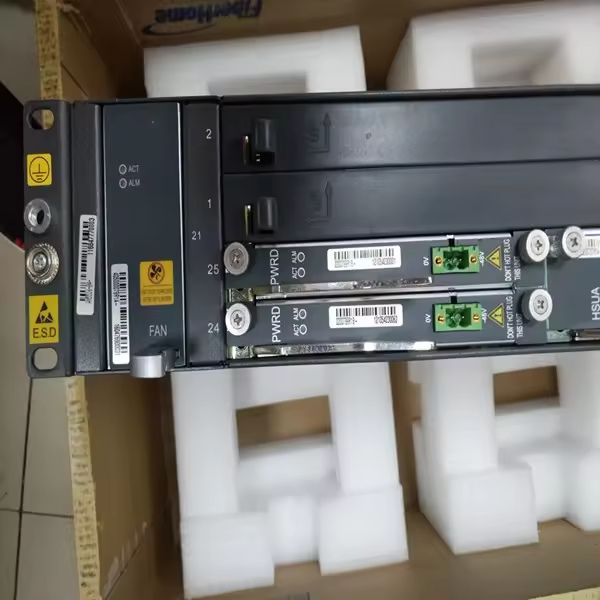

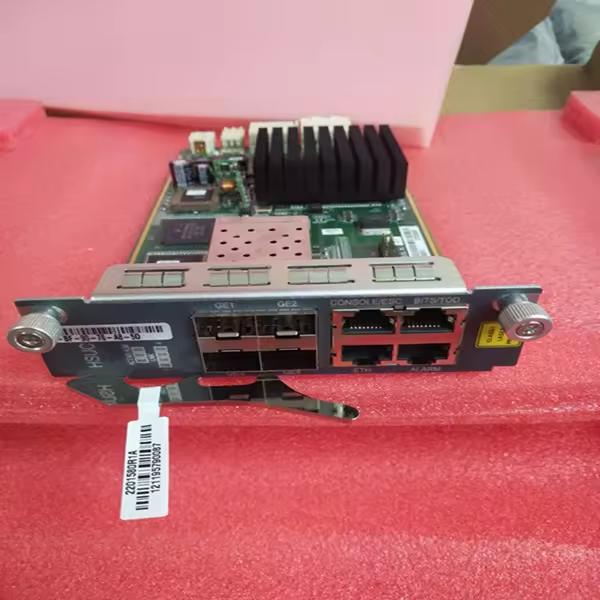

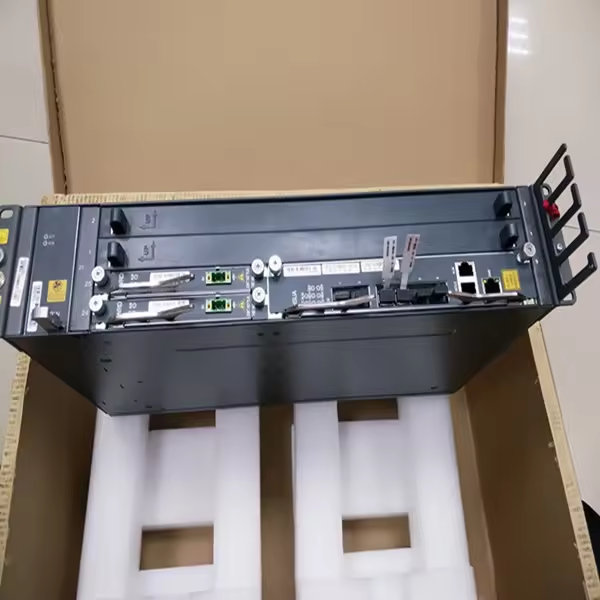

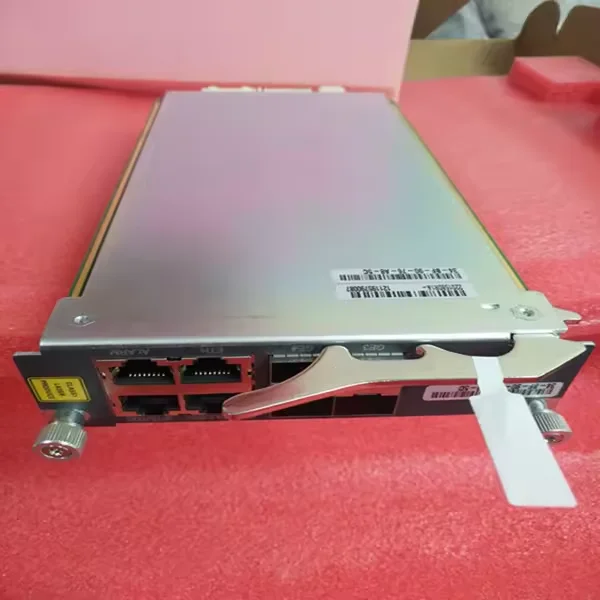

The HSUA Uplink Card serves as the switching uplink card for the AN5516-04 OLT, providing system control, service switching, and aggregation functionalities. It features 4-port GE upstream optical/electrical ports. The basic configuration for the AN5516-04 chassis includes 2*HSUC/A control&uplink boards, 1*PWRA AC power board, and 2*GCOB/GC8B 16/8-ports GPON service boards equipped with C+/C++ SFP modules. The AN5516-04 equipment represents a new generation intelligent carrier-grade access product integrating MSAN/EPON/GPON/10GEPON/XG-PON technologies. This versatile product not only offers large-capacity, high-bandwidth, and cost-effective voice, data, and video service access solutions but also features compact design and easy deployment capabilities, making it suitable for various deployment scenarios with limited space. It effectively meets the growing demand for comprehensive network services coverage. Additionally, its compatibility with traditional copper wire access services enhances service compatibility and promotes the evolution of traditional access solutions.
Model | HSUA |
Descriptions | 4-Port GE Optical/Electrical Uplink |
Supported | Intra-card aggregation; Inter-card aggregation |
Clock Synchronization Modes | SyncE, 1588 V2, and BITS |
Item | 10 / 100 / 1000Base-T |
Interface type | RJ45 |
Interface rate | 10 / 100 / 1000Mbit/s self-adaptive |
Transmission media | CAT-5 |
Applicable standard | IEEE 802.3-2005 |
Transmission Distance | 100m |
Item | 1000Base-SX | 1000Base-LX |
Interface type | LC / PC | LC / PC |
Interface rate | 1000Mbit/s | 1000Mbit/s |
Central wavelength | 850nm | 1310nm |
Maximum transmission | 500m | 20km |
Maximum launched power | -4dBm | -3dBm |
Minimum launched power | -9.5dBm | -11.5dBm |
Maximum receiving sensitivity | -17dBm | -19dBm |
Minimum extinction ratio | 9dB | 9dB |
Product Features:
Extraordinary Access Capabilities: The AN5516-04 OLT features a large-capacity, high-density carrier-grade multi-Gigabit platform, accommodating up to 256 PON ports within a single frame. It provides versatile 10 Gigabit high-speed uplink boards, including configurations like 1*10GE+ 4*GE, 2*10GE+ 2*GE, and 6*GE, with optional optical and electrical interfaces. Supporting an STM-1/E1 dedicated line upstream interface and a maximum of 16×16GE dedicated line downstream interfaces, it ensures efficient data transmission. With optical split ratios of 1:32/64/128 and compatibility with CLASS C+ optical modules, it facilitates ultra-long transmission distances while ensuring signal integrity. Robust Service Access: The OLT ensures comprehensive service access, covering broadband, voice, IPTV, CATV, TDM, and more, catering to diverse user needs. Advanced Protocol Support: Support for IEEE 1588V2 protocol and 1PPS+TOD clock input ensures precise time synchronization across the network. Additionally, it supports OSPF, VRRP, RIP, and other three-layer functional protocols for efficient network management. Versatile Platform: With compatibility across EPON/GPON/10G PON/P2P platforms, it facilitates seamless evolution in FTTX environments, ensuring future-proof network deployments. Green Technology: Utilizing high-performance, low-power chips, the OLT demonstrates superior energy efficiency, with overall power consumption lower than the industry average. Its 8-speed temperature-controlled smart fans support idle port sleep and deep energy-saving mechanisms, further enhancing environmental sustainability.
