Description

Key attributes

Type

BUSINESS CARDS

Use

INDOOR

Network

4 G, POE, TCP, Wi-Fi

Model Number

GTBO

Brand Name

Place of Origin

Hunan, China

Warranty Time

1 YEAR

Product name

BUSINESS CARDS

Application

FTTH FTTX Network

Color

black

Ports

8 Ports

Material

ABS,iron

Function

Distribution Fiber System (FTTH)

Warranty

1 Year / 12 Months

Fiber Type

TTx Solutions

Power supply

110~240VAC

Keywords

GPON OLT Card

Packaging and delivery

Selling Units

Single item

Product descriptions from the supplier

Product Description

Brand	ZTE
Item	GTBO
Port	8
Type	N1 Module: Single Fiber Bidirectional Optical Module N1
Type	N2a Module: Single Fiber Bidirectional Optical Module N2a
Operating Wavelength	Tx: 1577 nm, Rx: 1270 nm
Encapsulation Type	SFP+
Port Rate	Tx: 10 Gbit/s, Rx: 2.488 Gbit/s
Minimun Output Optical Power	N1 Module: 2dBm
Minimun Output Optical Power	N2a Module: 4dBm
Maximum Output Optical Power	N1 Module: 6dBm
Maximum Output Optical Power	N2a Module: 8dBm
Maximum Receiver Sensitivity	N1 Module: -27.5dBm
Maximum Receiver Sensitivity	N2a Module: -29.50dBm
Optical Connector Type	SC/UPC
Optical Fiber Type	Single-mode
Reach	20.00 km
Saturation optical power	N1 Module: -7dBm
Saturation optical power	N2a Module: -9dBm
Extinction ratio	8.2dB
Weight	1.68kg
Dimensions (W x D x H)	393.1 mm(H) × 23.9 mm(W) × 214 mm(D)

ZTE GTBO Service Board Product Features

* Support ISSU and NSR
* Support multiple services including VoIP, HSI, IPTV, VPN, and mobile backhaul.
* Support CFM functions defined by 802.1ag.
* Support Type-B/C PON protection, Ethernet and IP service protection, and redundant protection of the switch & control cards, power cards, fans, and uplink interfaces.
* Provide enriched equipment security, system security, network security and service security features
* Provide redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane
* Support 8 port XGS-PON/ XG-PON/Combo PON/10G-EPON cards, 8-port 10GE cards and 48-port GE P2P cards.

Product Detail

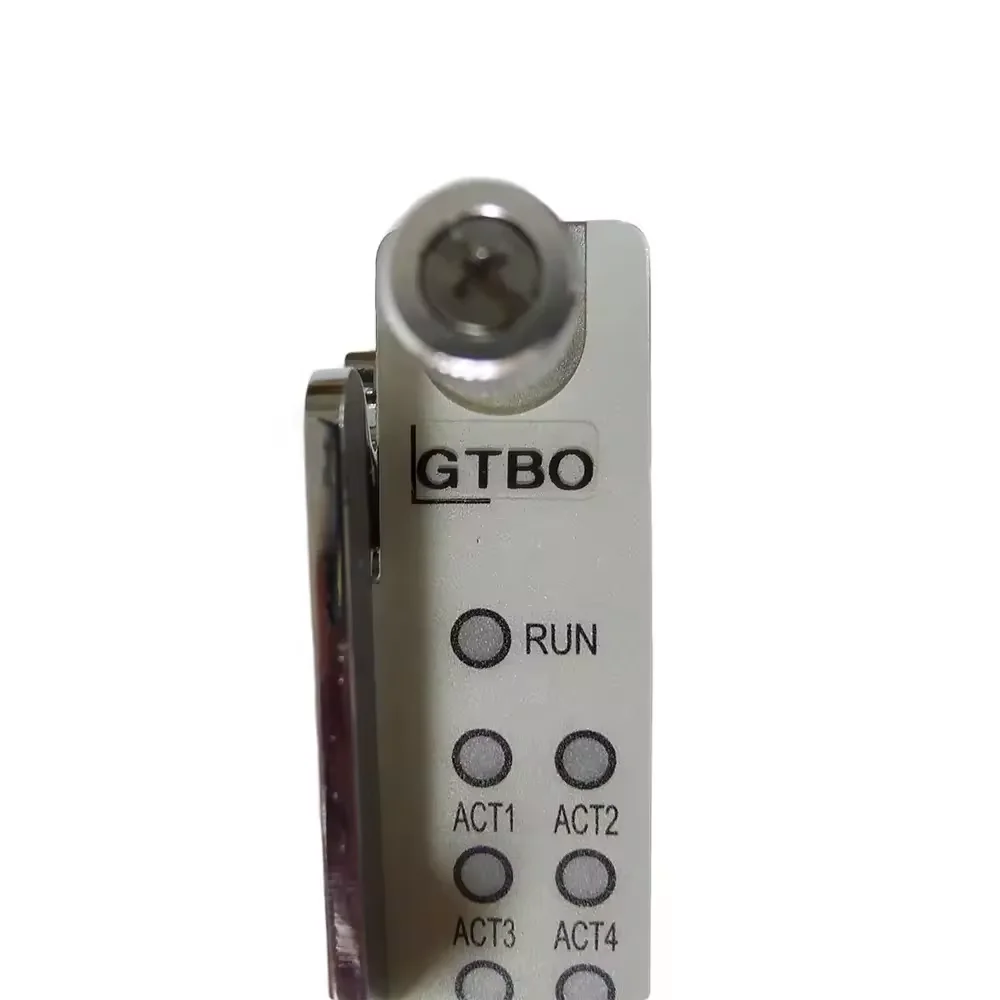

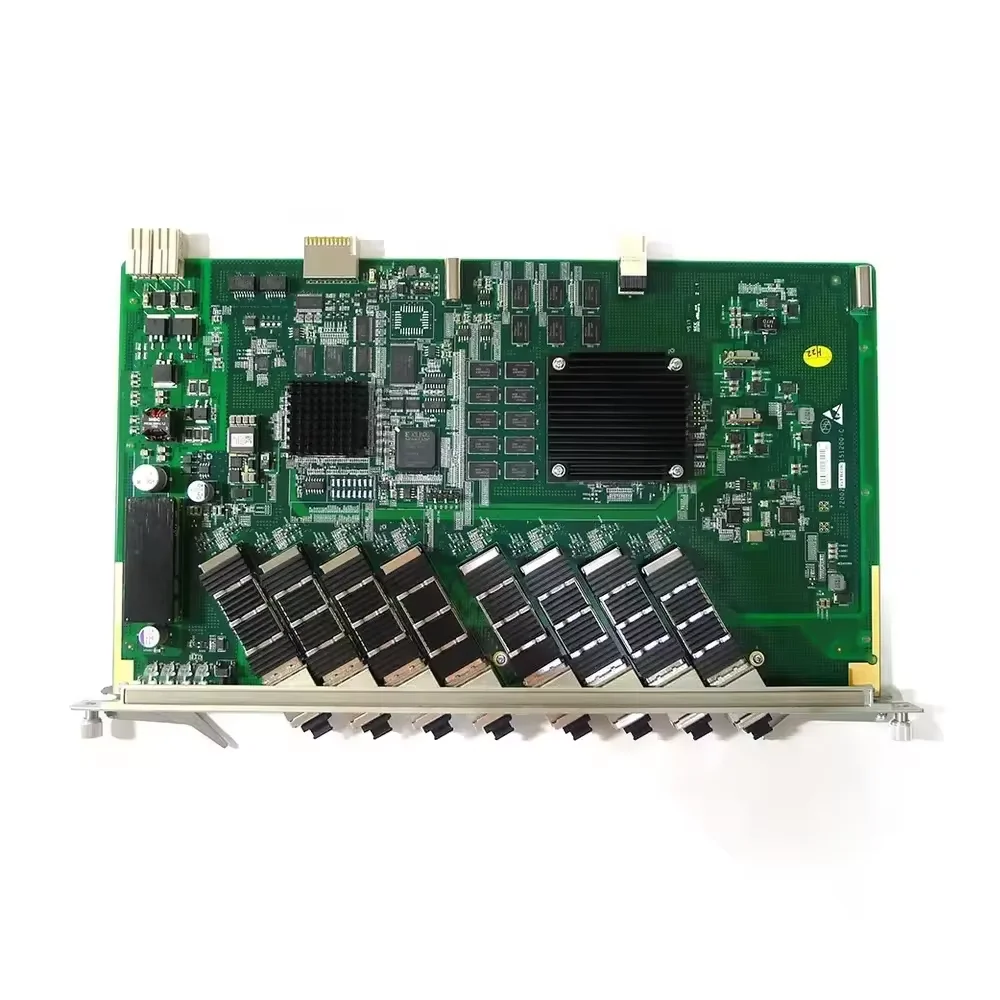

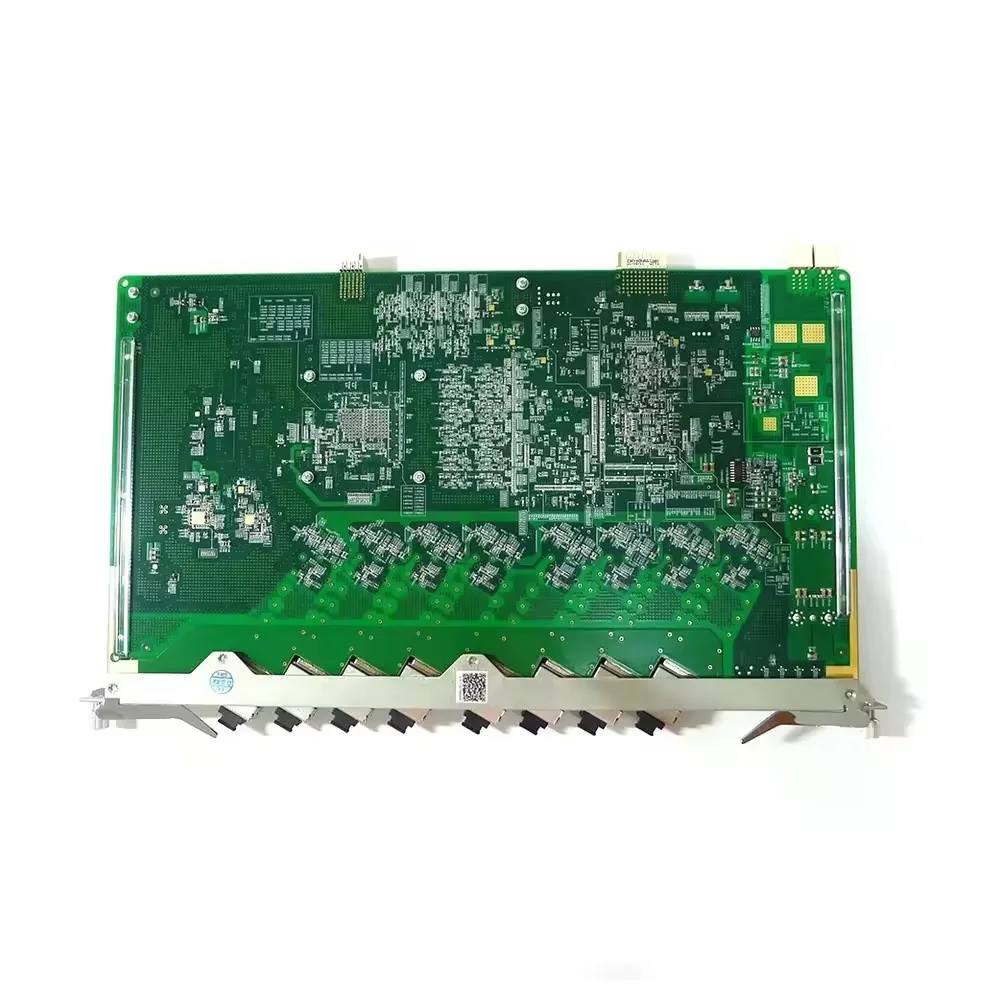

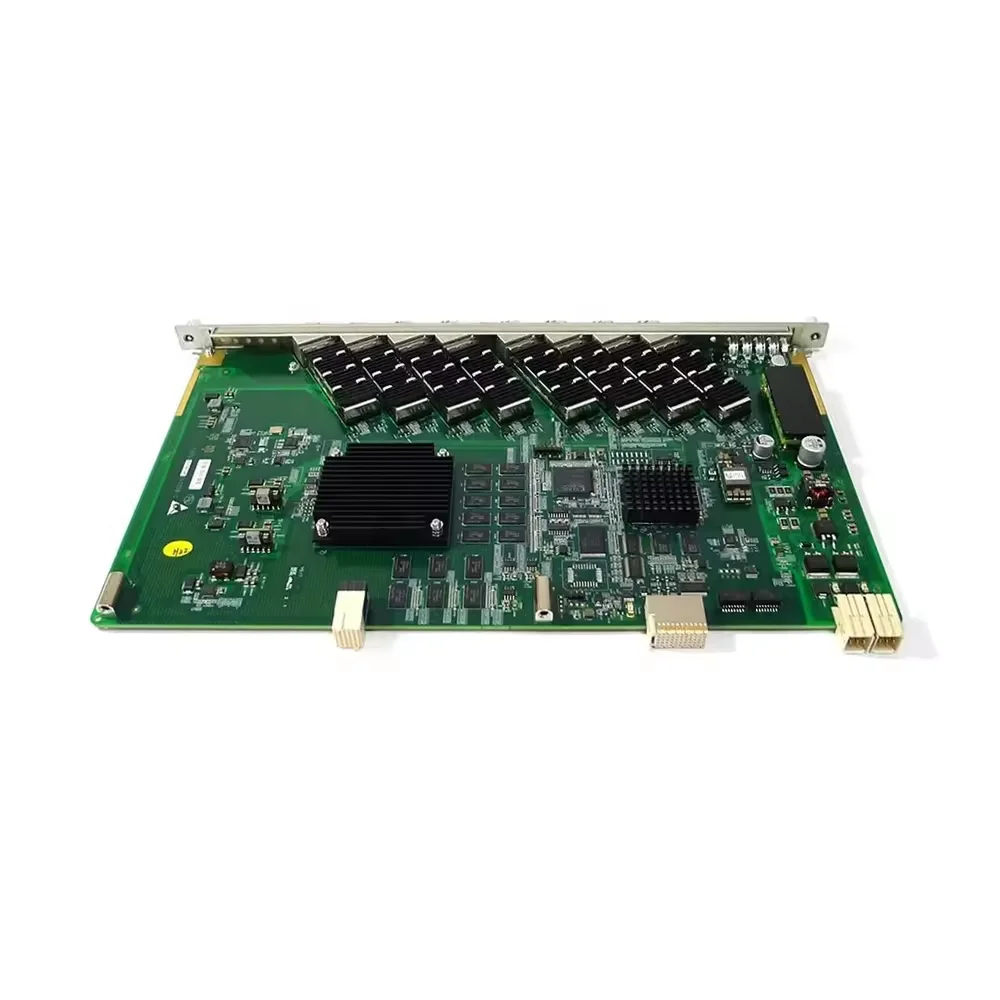

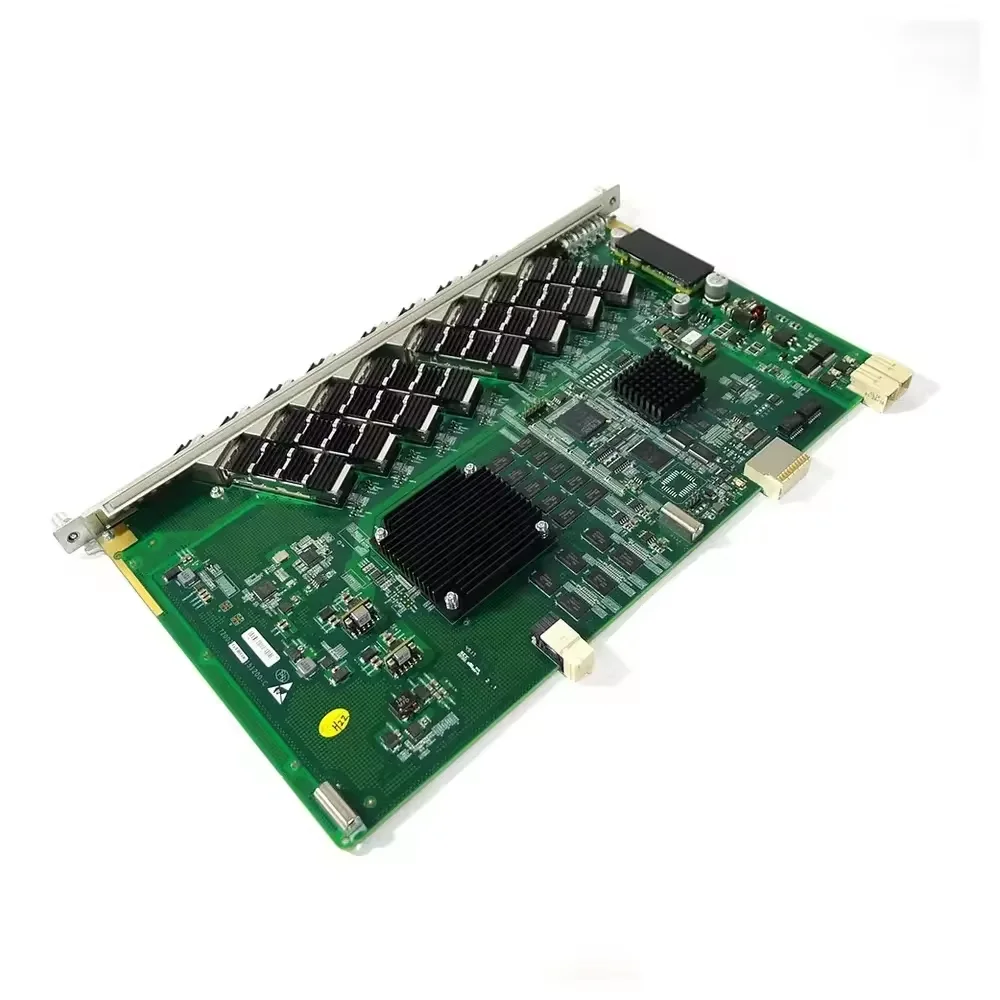

GTBO Card Popular Explosive New Products C300 C320 Olt Best Super Control Unit Board

Related Products

Name: GTBO Card Popular Explosive New Products C300 C320 Olt Best Super Control Unit Board
Brand: ENKEN
SKU: 1601187712165
Price: 200.00 USD
Availability: InStock
Rating: 5 (1 reviews)
